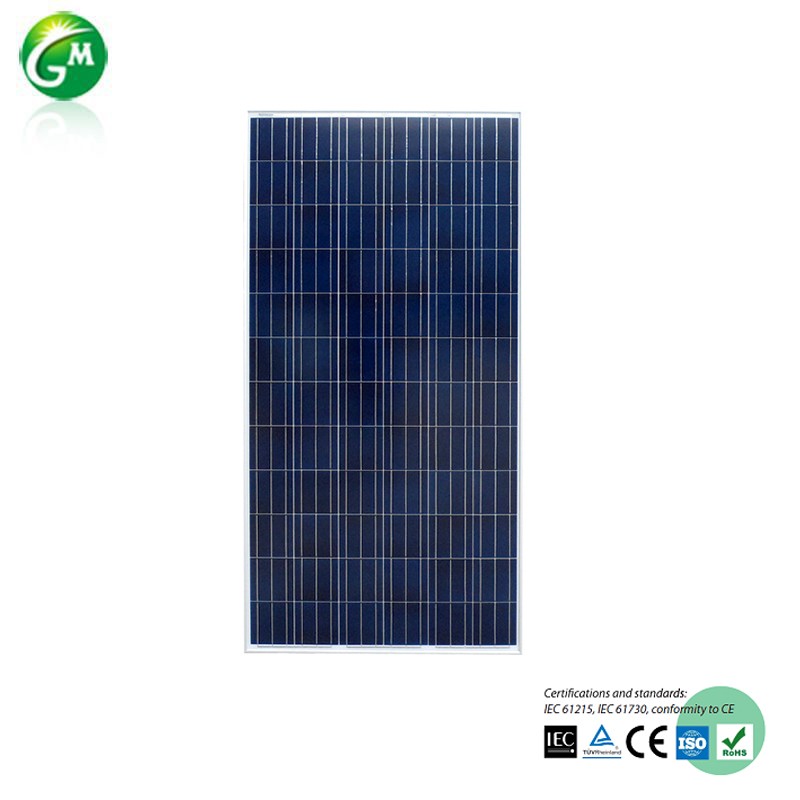

POLYCRYSTALLINE SOLAR MODULE
2018-12-26 479
Products features:
◆ High efficiency cell
◆ Strong aluminum alloy frame
◆ Standard tolerance (Guaranteed standard tolerance from -3~+3% ensures power output reliability)
◆ Excellent weak light performance
Excellent performance under low light environments (mornings, evenings, and cloudy days)
◆ Withstand high wind and snow loads
Entire module certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal)
Electrical Characteristics
SFP-300 | |
Maximum Power at STC (Pmax) | 300W |
Optimum Operating Voltage (Vmp) | 36 V |
Open - Circuit Voltage (Voc) | 43.2V |
Optimum Operating Current (Imp) | 8.33 A |
Short - Circuit Current (Isc) | 9.17 A |
Cell Efficiency | 16 % |
Operating Module Temperature | -40 °C to +85 °C |
Maximum System Voltage | 1000 V DC (IEC) / 600 V DC (UL) |
Diodes | 3 by pass |
Power Tolerance | -3/+3 % |
STC: irradiance 1000 W/m2, module temperature 25 °C, AM=1.5; Power measurement tolerance: ± 3%

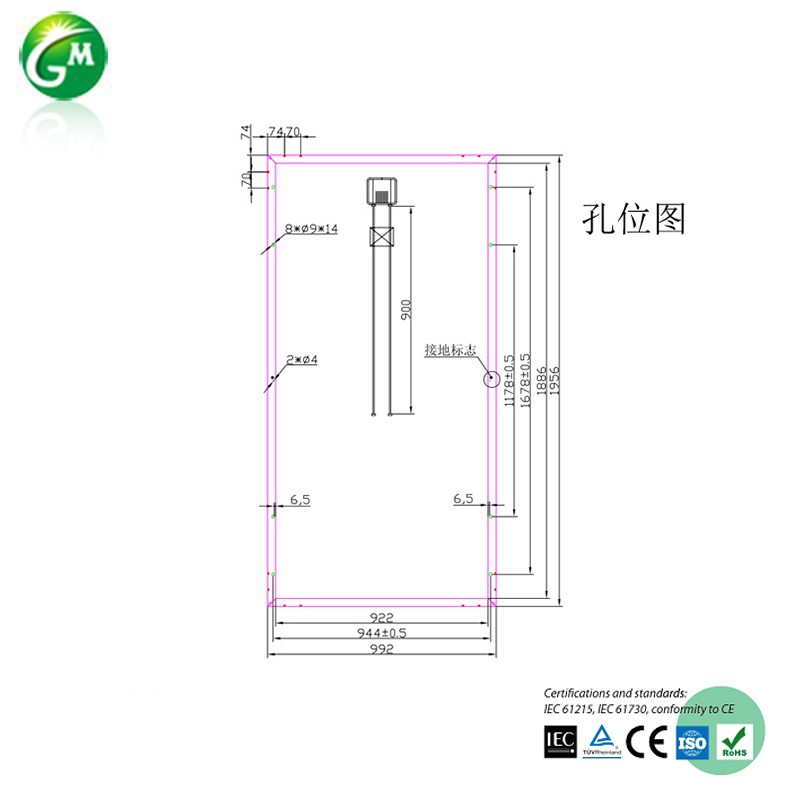

Mechanical Characteristics
Temperature Characteristics
Nominal Operating Cell Temperature (NOCT) | 45±2 ℃ |
Temperature Coefficient of Pmax | -0.47%/℃ |
Temperature Coefficient of Voc | -0.34%/℃ |
Temperature Coefficient of Isc | 0.045%/℃ |
Packing Configuration
Container | 20'GP | 40'GP | 40'HQ |
Pieces per pallet | 30 | 30 | |
Pallets per container | 5 | 10 | |
Pieces per container | 150 | 300 |
Quality and Safety:
Product warranty: |
Singfo Solar modules will last for at least 25 years. |
Free from defects in material and workmanship for 5 years. |
All the panels passed IEC, TUV standards. |
Power warranty: |
Maintain more than 90% of minimum rated power for 10 years. |
Maintain more than 80% of minimum rated power for 25 years. |
-
